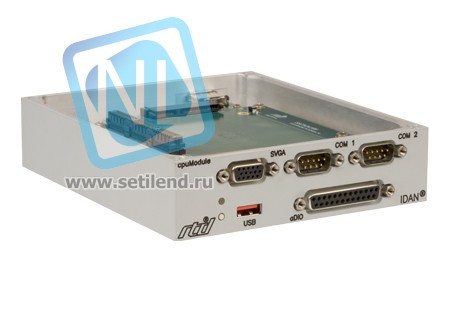

Корпус IDAN-CML24BT Stackable Packaging System for CML24BT PCIe/104 Single Board Computers & Controllers Intel Atom E3800: 1.33 GHz - 1.91 GHz Single-Core and Multi-Core Processors IDAN-CML24BTD1330HR‑4096

Корпус IDAN-CML24BT

Stackable Packaging System for CML24BT PCIe/104 Single Board Computers & Controllers
Intel Atom E3800: 1.33 GHz - 1.91 GHz Single-Core and Multi-Core Processors
Включает SATA34106HR и Жесткий диск 2.5" Hard Drive Carrier

Ключевые характеристики

• Complete PC-compatible Single Board Computer
• PCI/104-Express stackable bus structure
  • PCIe Type 2 expansion bus
  • PCI expansion bus
    • Standard stack-down configuration
    • Stack-through or stack-up optional
• Intel Atom E3800-series 1.33 GHz – 1.91 GHz Processors
  • Max. Core Temperature: 110°C
  • E3815 Single-Core, 1.46 GHz
  • E3825 Dual-Core, 1.33 GHz
  • E3845 Quad-Core, 1.91 GHz
• 4GB DDR3 Surface-Mounted SDRAM
• 32GB standard surface-mounted industrial-grade SATA flash drive
• Four x1 PCIe Links
• One SATA Port (connected to an integrated SATA carrier)
• Four Serial Ports (RS-232/422/485)
• Three USB 2.0 Ports
• Gigabit Ethernet
• Analog VGA
• Embedded DisplayPort (eDP) 1.3
  • DisplayPort, DVI, and HDMI
  • Supports 4K resolution
  • Includes Audio
• Advanced Digital I/O (aDIO)
• Modular rugged milled aluminum frames
• Integral Structural Heatsink with Embedded Heatpipes & External Fins for superior heat dissipation
• Maintains the PC/104 self-stacking bus concept
• Allows quick interchangeability of modules
• Each frame includes wiring, connectors, CML24BTSATA34106HR
• 2.5" Hard Drive Carrier Module (Installation of Flash Drive available. May affect standard operating temperature.)
• Aluminum Alloy - 6061, Temper-T6
• Finish - MIL-PRF-85285 polyurethane topcoat, per FED-STD-595, color 36495 (light gray). Panel engravings per FED-STD-595, color 37038 (black).
  • Additional paint options available upon request

Внешние порты ввода/вывода

• 9-pin D-sub receptacle (male pins) with RJ-45 adapter
  • 1000/100/10 BASE-T Ethernet
  • Gigabit Ethernet
    • Intel WG82574IT PCI Express x1 Controller
    • 10/100/1000 Auto-negotiation
    • Jumbo Frame Support
    • PXE Network Boot
• Two 9-pin D-sub receptacles (male pins)
  • Four RS-232/422/485 serial ports on two connectors, each connect configurable as:
    • One full RS-232 port with TxD, RxD, CTS, RTS, DSR, DTR, RI, and CD
    • One RS-422/485 port with TxD+, TxD-, RxD+, RxD-
    • Two RS-232 ports:
      • One with TxD, RxD, CTS, and RTS
      • One with TxD and RxD
    • One RS-232 port with TxD and RxD, and one RS-422/485 port with TxD+, TxD-, RxD+, RxD-
    • Two RS-422/485 ports each with TxD+, TxD-, RxD+, RxD-
  • 120 ohm termination for RS-422/485 Mode
  • Serial Ports Modes are BIOS-configured, no jumper settings required.
  • Standard PC 16C550 UART Interface
• 9-pin D-sub receptacle (male pins) with USB Type A female adapter
  • Two USB 2.0 ports
  • Automatically resettable over-current protection (500 mA @ 5Vdc)
  • USB Boot capability
• 15-pin female high density D-sub receptacle (female sockets)
  • Analog VGA Interface
• DisplayPort connector
  • DisplayPort, DVI, and HDMI (supports 4K resolution)
  • HD Audio
• 25-pin female D-sub receptacle (female sockets)
  • Advanced Digital I/O
    • One 8-bit-programmable I/O with Advanced Digital Interrupt Modes
      • Event Mode Interrupt generates an interrupt when any input bit changes
      • Match Mode Interrupt generates an interrupt when input bits match a preset value
      • External Strobe Mode latches 8 data inputs and generates and interrupt
    • One 4-bit port programmable as input or output
    • Two Strobes can be configured as readable inputs
  • Additional Hardware Features
    • ATX power button input
    • Reset power button input
    • RTC battery input
• Utility USB
  • High retention Type A connector
  • Complies with Class 1 Div II minimum withdrawal force of 15 N
  • Connection for standard USB devices such as:
    • Keyboard/mouse
    • Flash drives
    • Cameras
• BIOS configurable button
• Can be configured for ATX power, or hardware reset
• Button can be disabled

Внутренние порты ввода/вывода

• SATA Controller
• Surface-Mount Flash:
• 32GB Onboard Industrial SATA Flash
• Built in Wear Leveling, Error Correction, and Bad Block Management
• SMART supported (Self-Monitoring, Analysis and Reporting Technology
